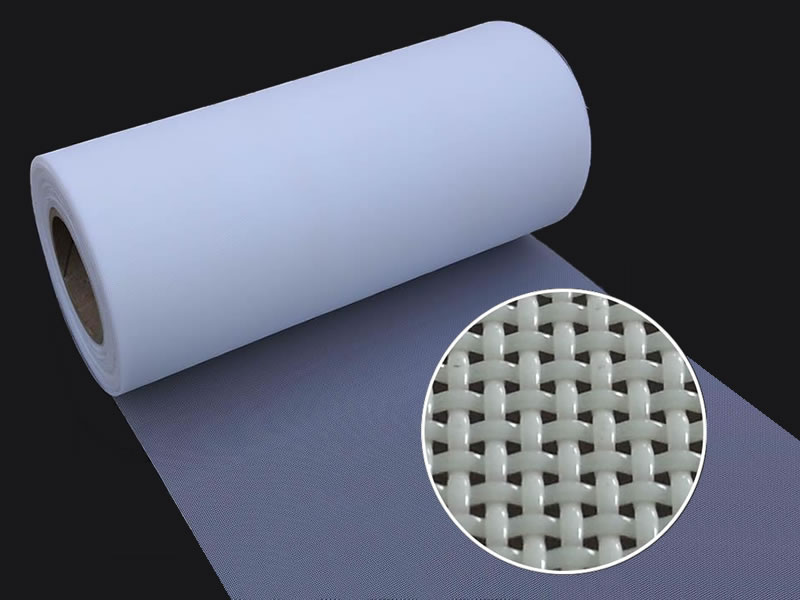

Nylon & Polyester Mesh Screen Filters | Nylon woven filter mesh suppliers

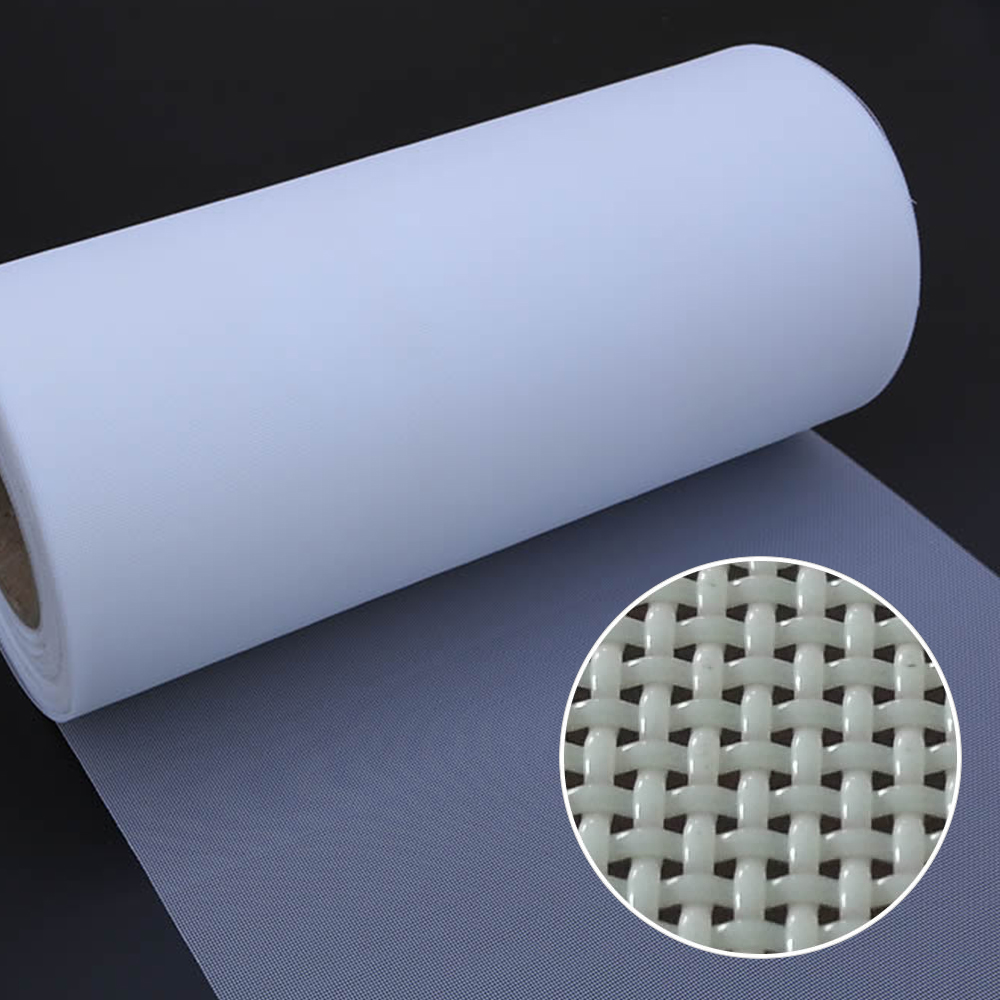

Nylon Mesh

Advantages:Mesh opening uniform, stable, good elasticity, good wear resistance, smooth surface, good alkali resistance, wear resistance, high temperature resistance, good insulation, easy to clean, light texture etc.

Applications:Filtration: fuel oil, anti-fuel oil, transformer oil, petroleum, edible oil, olive oil, liquid medicine, paint, ink, alcohol, dyes, resins, MSG, wine, juice etc.

Screening: food, flour screening, mining, coal, sludge, smoke, air, dust, dust filtration etc.

Polypropylene Mesh

Advantages:Acid and alkali resistance, good corrosion resistance, can replace polyester screen, nylon screen

Applications:Polypropylene Mesh are mainly used for the jacket and support of the filter element, gas, liquid, chemical reagent filtration, etc

Polyester mesh

Advantages:Good acid resistance, temperature resistance, wear resistance, easy cleaning, high tensile strength

Applications

Screening: food, flour screening, mining, coal, sludge, smoke, air, dust, dust filtration

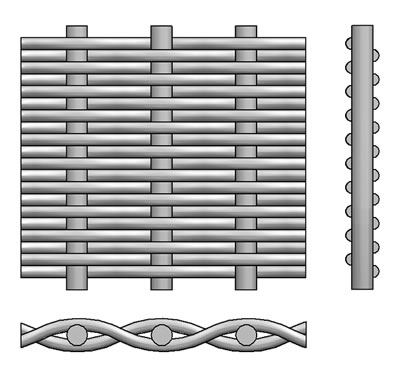

Plain Dutch weave

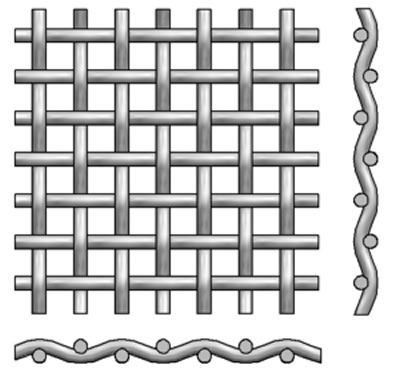

Plain weave

Nylon filtration Mesh
Material	Mesh count		Thread Diameter	Opening	Open area	thickness	Weight
	CM	INCH	Micron	micron	%	micron	g/㎡
PA6	4	10	550	2000	62	950	243
PA6	5	12	500	1616	58	850	240
PA6	6	14	450	1360	57	880	227
PA6	6	16	400	1188	56	780	205
PA6	7	18	350	1060	57	670	175
PA6	8	20	350	920	53	685	195
PA6	9	24	250	800	58	470	120
PA6	10	25	300	700	50	580	180
PA6	12	30	250	590	40	475	150
PA6	12	30	300	535	42	580	210
PA6	14	35	250	475	43	480	170
PA6	16	40	200	435	47	375	130
PA6	16	40	250	385	37	480	225
PA6	20	50	150	350	49	380	100
PA6	20	50	200	300	37	385	160
PA6	24	62	150	260	40	280	110
PA6	28	70	120	240	44	215	80
PA6	30	76	120	219	42	220	100
PA6	32	80	100	217	47	170	64
PA6	36	90	100	180	41	175	73
PA6	40	100	100	150	37	180	83
PA6	43	110	80	150	43	140	57
PA6	48	120	80	130	38	145	62
PA6	56	140	61	120	44	90	42
PA6	61	150	61	100	39	96	46
PA6	64	160	61	98	38	100	47
PA6	72	180	50	90	41	80	36
PA6	80	200	50	77	37	85	40
PA6	100	250	45	56	31	70	38
PA6	120	305	43	40	23	72	45
PA6	130	330	43	34	20	75	48
PA6	140	355	38	34	22	66	40
PA6	150	380	40	27	16	67	48
PA6	165	420	35	26	18	60	40

Polyester filtration mesh
Material	Mesh Count		Yarn diameter	Mesh Opening	Open Area	Thickness	Weight
	CM	INCH	Microns	Microns	%	Microns	g/㎡
PET	5	13	450	1150	60	850	259
PET	6	15	400	1270	58	760	246
PET	7	18	350	1080	57	660	220
PET	8	20	350	900	51	660	251
PET	10	25	300	700	49	570	231
PET	10	25	250	750	56	450	160
PET	12	30	300	530	40	580	277
PET	12	30	250	580	48	460	192
PET	12	30	150	680	67	260	69
PET	14	36	200	515	52	360	143
PET	15	38	250	420	40	470	240
PET	16	41	200	425	46	380	164
PET	20	50	150	350	49	260	115
PET	24	60	150	266	42	280	138
PET	28	70	120	240	45	230	103
PET	28	70	80	280	62	150	46
PET	30	76	120	215	42	230	111
PET	32	80	80	230	54	150	52
PET	35	90	100	180	42	180	92
PET	39	100	100	150	36	190	103
PET	47	120	64	150	50	120	48
PET	47	120	71	140	43	130	59
PET	53	135	64	125	44	122	54
PET	59	150	55	115	46	99	45
PET	63	160	64	90	33	125	66
PET	64	163	55	100	41	100	48
PET	71	180	50	91	41	85	41
PET	77	195	55	75	33	105	58
PET	80	203	45	80	41	80	41
PET	90	230	45	65	34	82	46
PET	100	256	39	60	36	69	38
PET	120	306	35	48	33	63	37
PET	140	355	35	36	25	62	43
PET	150	380	35	32	223	64	46

Material	Mesh(/cm)	Mesh(/inch)	Thread（um）	Opening（um）
PP	8	20	250	1000
PP	12	30	250	583
PP	16	40	230	395
PP	20	50	200	300

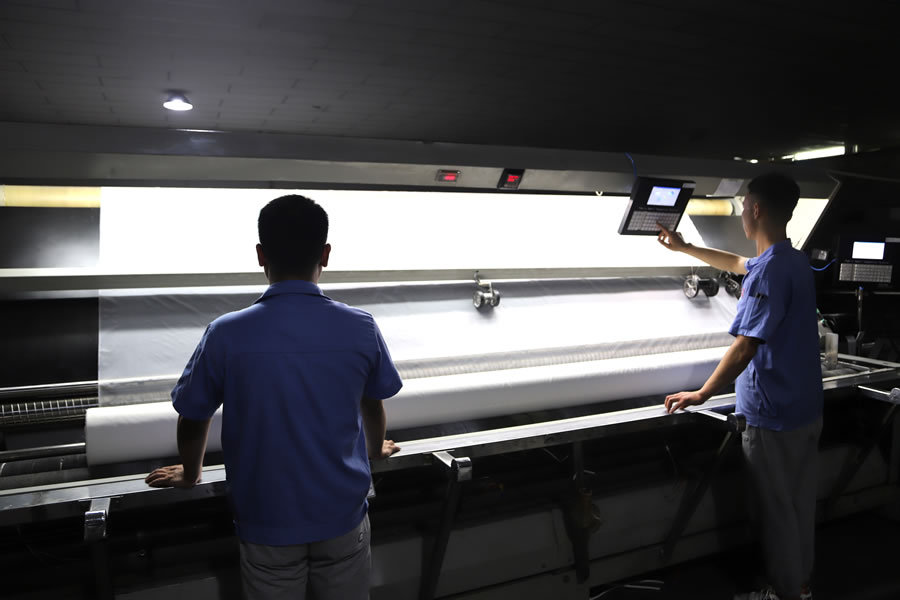

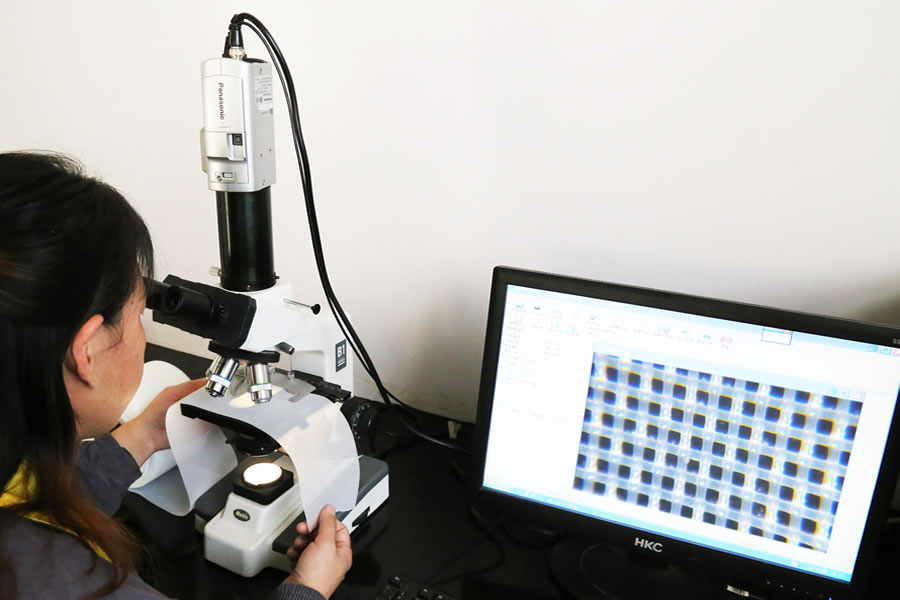

Inspect The Width Length And Blemishes	Inspect The Wire Dia. And Apertuer

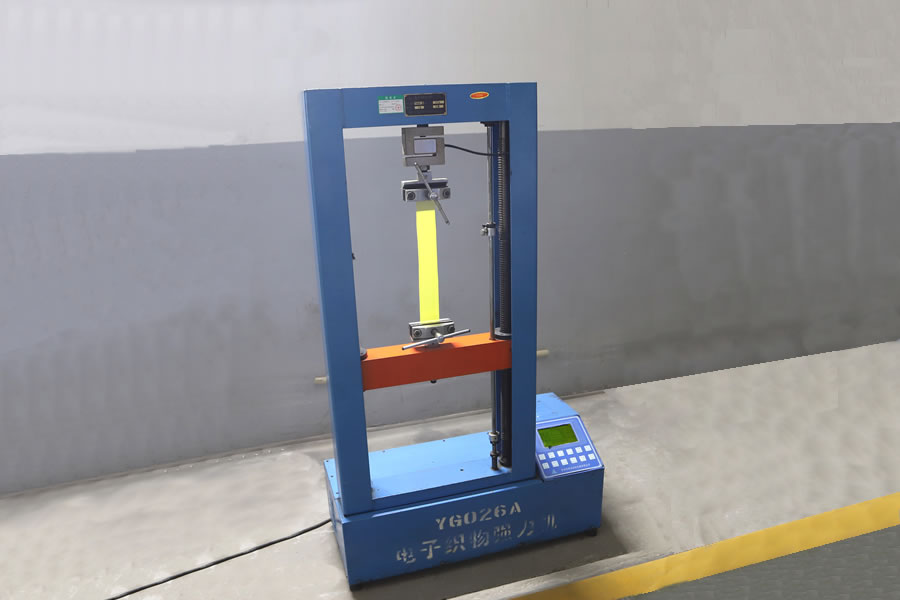

Test The Tension	Inspect The Breaking Strength Of The Wire
Inspect The Wire Density	Inspect The Wire Dia

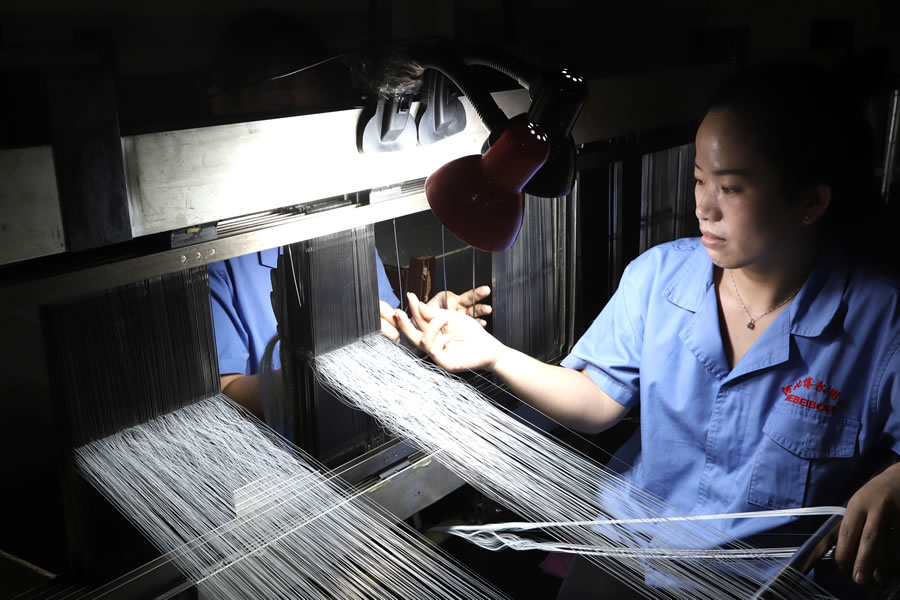

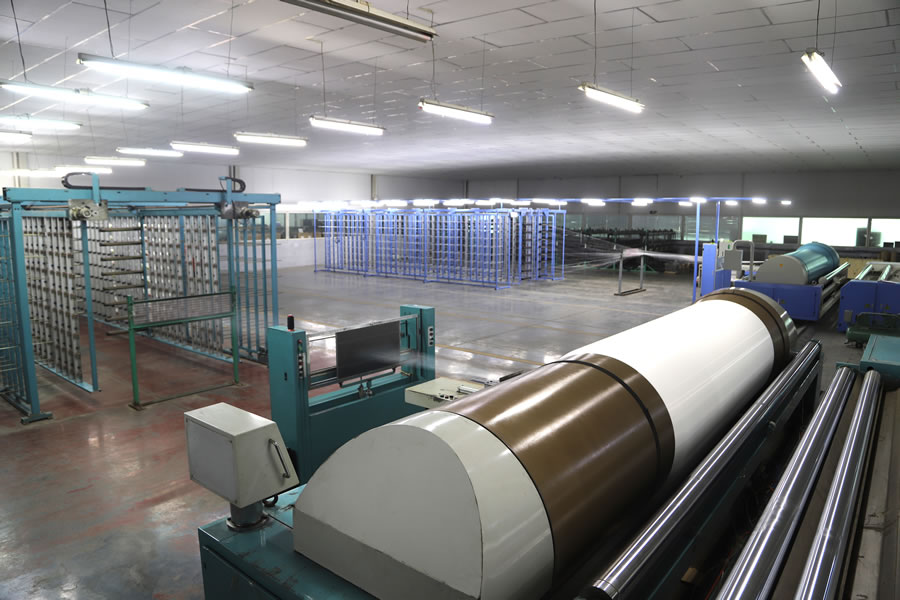

Drawing In The Reed And Heddle	Warping

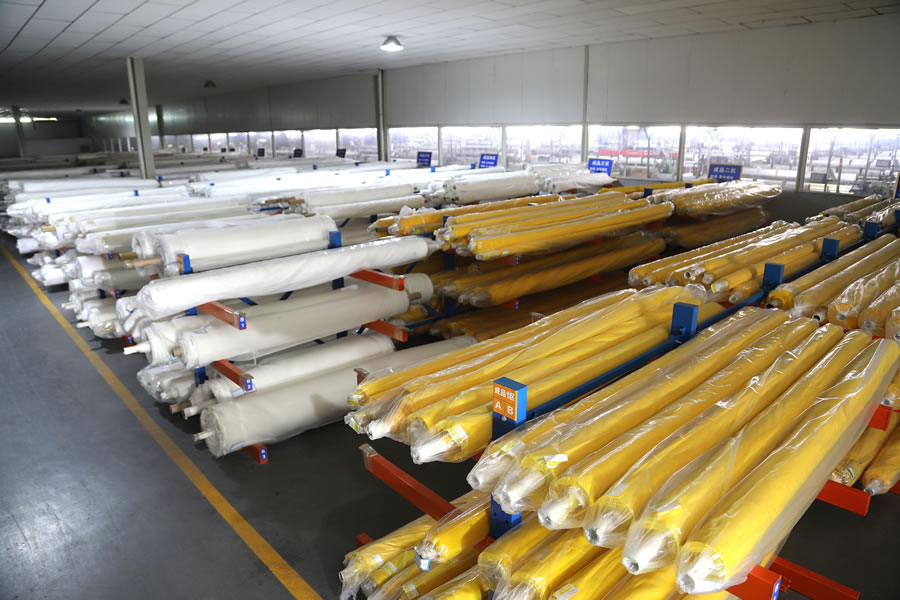

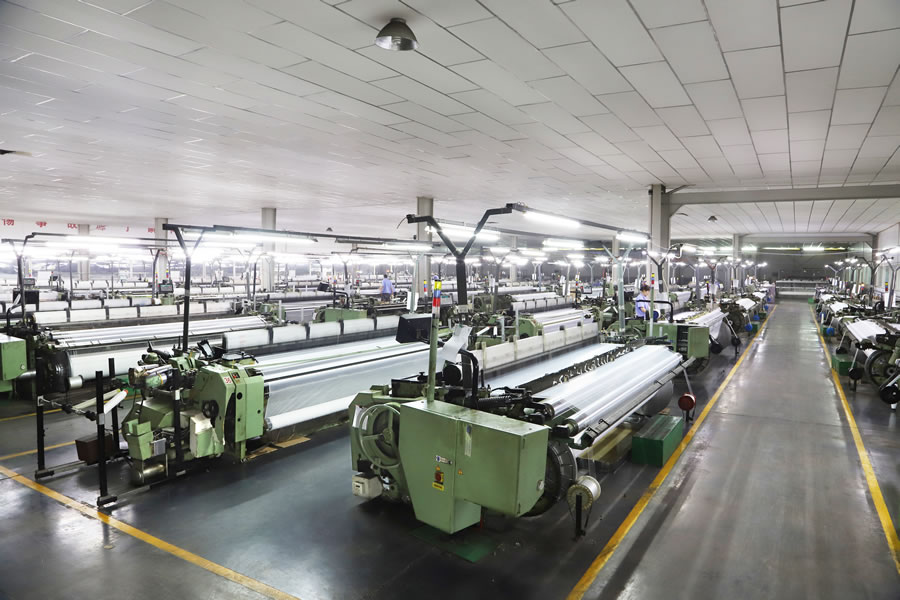

Weaving	Warehourse

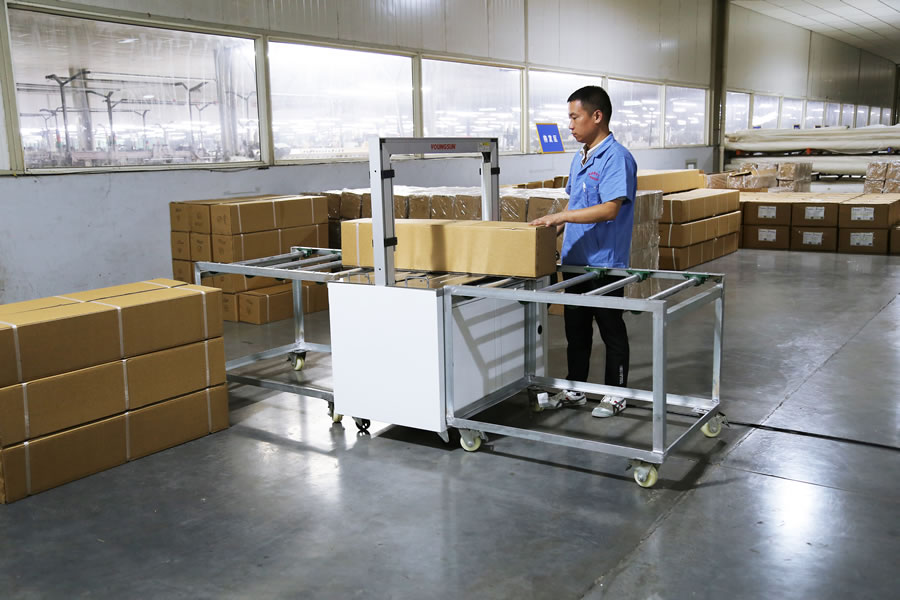

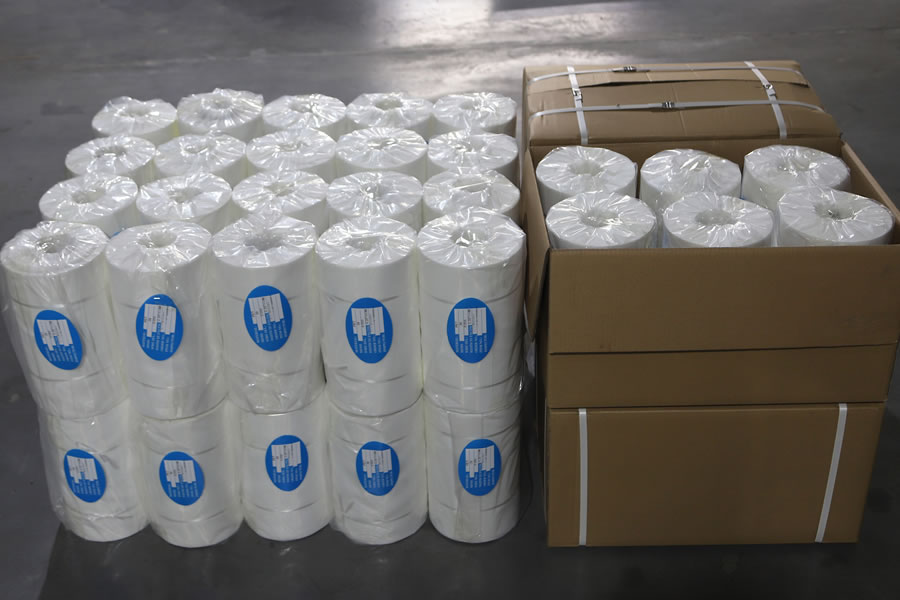

Package	Package

SKU:
Availability:

Quantity:



Inquire Add to Basket

PRODUCTS

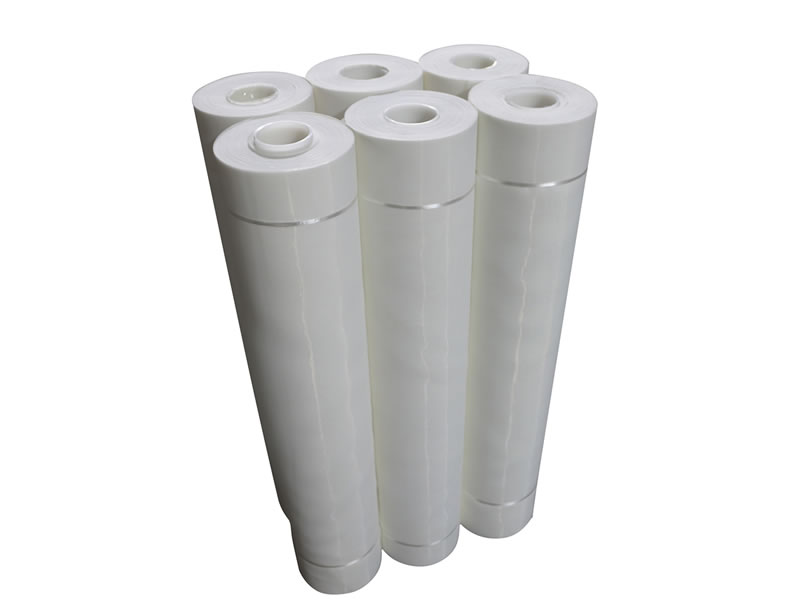

Woven Screen Filter Mesh
